50Ω SMPM Female to Female RF Adapter 0.3MHz-50GHz 170V

Brand Name : ELT

Model Number : SSMP-KK105

Certification : ISO9001, IS014001

Place of Origin : Xi'an, China

MOQ : MOQ 50 pieces

Price : The price depend on the quantity

Payment Terms : T/T,L/C,D/P

Supply Ability : As requirements

Delivery Time : 8-12 weeks for new production

Packaging Details : 100pcs/bag or plastic bottle;100pcs/carton as requirement

Product Name : Straight SMPM Female to Female Adapter

Model : SSMP-KK105

Frequency Range : 0.3MHz-50GHz

Impedance : 50Ω

Rated Voltage : 170v

DWV : 500V

Insulation Resistance : ≥5000MΩ

Center Conductor : Copper Alloy, Gold Plated

Outer Conductor : Copper Alloy, Gold Plated

Samples : Available，In Stock

Contact Now

Straight 50Ω Gold Plated SMPM Female to Female SMPM Jack to SMPM Jack RF Coaxial Adapter up to 50GHz

The "SMPM Female to Female Adapter" is an adapter based on the SMPM RF coaxial connector standard. Its key function is to connect two RF devices/components with SMPM male connectors (plugs). Essentially, it serves as an intermediate adapter structure of "male smpm - female to female adapter - male smpm."

Features

Ultra-Compact SMPM Female to Female Adapter for High-Density Installation - Ideal for Portable Test Instruments and Miniature Sensor Modules
Space-Saving SMPM Female Connector with Axial/Radial Float for Blind Mating - Perfect for Miniaturized Electronic Devices
High-Density SMPM Female Adapter with Floating Capability - Designed for Compact Electronic Layouts

Product Specifications

Items	Value
Product Name	Straight SMPM Jack to SMPM Jack Adapter
Model	SSMP-KK105
Frequency Range	0.3MHz-50GHz
Impedance	50Ω
Rated Voltage	170v
DWV	500V
Insulation Resistance	≥5000MΩ
Center Conductor	Copper Alloy, Gold Plated
Outer Conductor	Copper Alloy, Gold Plated
Insulation Dielectric	Air

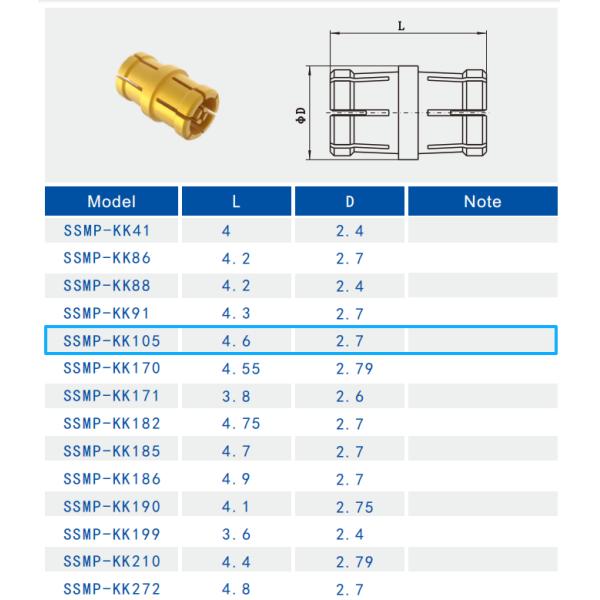

Product Outline Dimensions SSMP-KK105 (Unit: mm)

50Ω SMPM Female to Female RF Adapter 0.3MHz-50GHz 170V

Please contact us at sales3@xa-elite.com.cn for model availability and additional series options.

Applications

Microwave communication systems
Measurement equipment
Aerospace applications
Radar systems
Electronics fields

Manufactured with premium materials and strict quality control processes to ensure exceptional durability and reliability in demanding environments.

Packaging & Shipping

Each adapter is carefully packaged in protective cartons to ensure safe transit. We use reliable courier services with tracking numbers provided for all shipments.

Note: For other similar adapter models, please check our catalog. While some models are in stock, all can be produced quickly for models listed in our catalog.
